S1-DC3
ROUTING TYPE Closed Loop
BODY STYLE Dual Tanks
CYLINDER SIZE 2.5" OD x 6" TALL
TARGET VEHICLE Various, Universal Fit
HOSE SIZES (ID) 3/8" - 1/2" - 5/8"
INSTALL DIFFICULTY Intermediate
COST $239.00 + postage
GENERAL INFORMATION
This is the Original Dual OCC. This design provides filtering for the PCV connection, and it also adds that second layer of protection for the Crankcase Breather line. Simple connections are made with standard hoses and clamps. The body is fully welded aluminum alloy. The internals hold a stainless baffle assembly below the Outlet to help condense fumes into a liquid. This model may be ordered as shown or custom requests can be made to the configuration.
INCLUDED IN THIS KIT
1) Standard brass drain assemblies.
2) Universal mounting clip with hardware.
CAD DRAWING
S1 DC3 DRAWING WITH DIMENSIONS (PDF)
INSTALLATION NOTES
For Universal installs, the valve cover connections are detoured into the top Inlet fittings, and then the hoses continue from the side Outlets to their original destinations. The intent is to add an OCC to each side of the system, but not modifiy it. The hoses will now include the new OCCs to filter contaminants, but the routing will start and end at the original engine connections.
POPULAR OPTIONS
For this Universal OCC, the options will depend on the install, but the most popular items are:
1) 1/4 Turn Ball Valve Drain Upgrade
2) Drain Extension kit
3) Hose kit supplies
4) Stock color choices: Matte Black, Glossy Black, Glossy Red, Glossy White, Bare Brushed Aluminum.
BLANK SHOP SKETCH TEMPLATE
If you need to make notes for custom rotations, etc, you can download the blank template linked below. If you want to send us a copy, you may scan it, take a photo, or screen shot.
S1 DC3 SHOP SKETCH TEMPLATE (PDF)

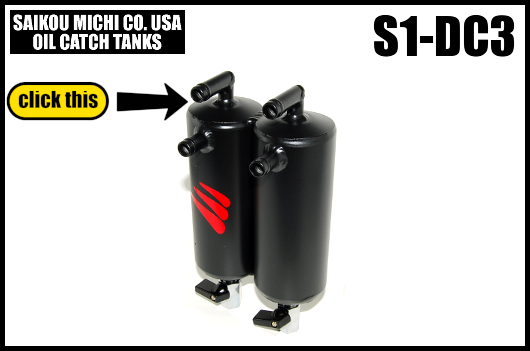

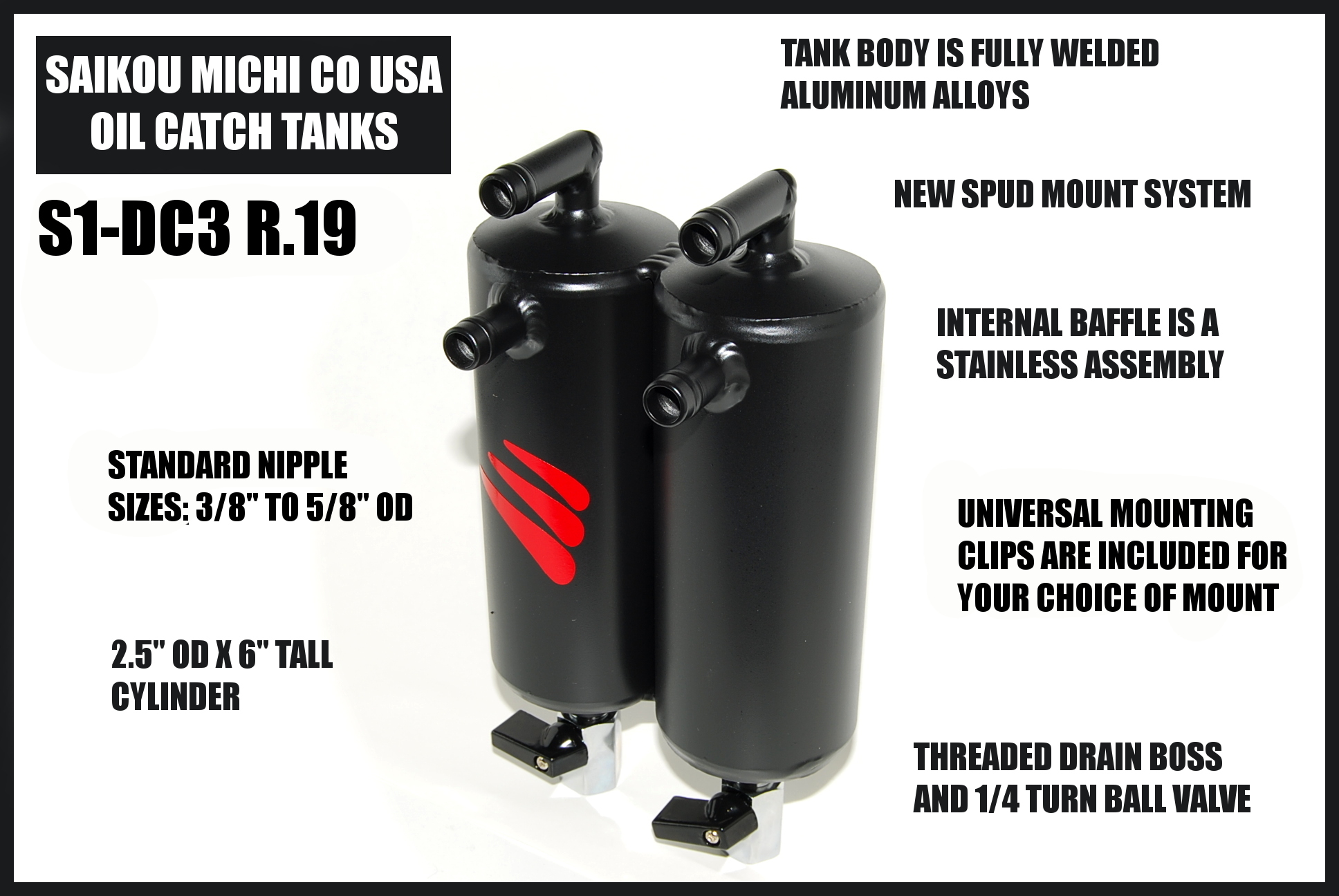

S1-DC3 Photo

CLICK FOR FULLSIZE

Drain Photo

STANDARD

BRASS DRAIN

Spud Mount Clips Photo

CLIPS FOR

SPUD MOUNT

2 Hole Clip

CLIP FOR

2 HOLE MOUNT

Saikou Logo Strip

DISCLAIMER:
All our products are simple filters and are not intended to modify the PCV system, this does not mean that local authorities will understand this. You are responsible for upholding local statues and keeping your vehicle legal. This product may be considered for "Offroad Use Only", please check your local statutes.


WARNING:
Working on any vehicle may be hazardous and result in injury. These products must be installed by a qualified technician. You must be qualified or seek the help of a professional mechanic. If you are not sure about how to connect this filter, have a professional mechanic perform the installation. Keep all hoses away from hot surfaces, if you are not sure of the routing, have a professional mechanic perform the installation. You are responsible for the safe and proper installation of this filter product.
