SAIKOU MICHI CO. USA
S1-G37-DC3
| S1-G37-DC3 | |
|---|---|
| ROUTING TYPE | Closed Loop |
| BODY STYLE | Dual Tanks |
| CYLINDER SIZE | 2.5" OD x 5" TALL |
| TARGET VEHICLE | Infiniti G37 |
| HOSE SIZES | 3/8" ID |
| KIT CATEGORY | Easy To Moderate |
| COST (plus postage) | $$ | GENERAL INFORMATION |

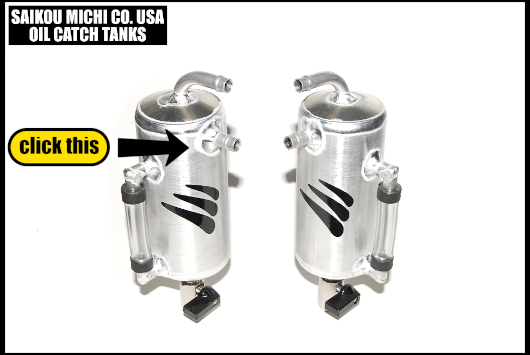

| This is a Dual tank setup for the G37 platform. Two separate tanks with custom rotations that drop into the G37 engine bay using existing mounting points. Each tank is handcrafted and includes G37 specific mounting brackets. The tanks are internally baffled to filter out the gunk and blow-by. Accessories are available to help make this a perfect drop in kit. | INCLUDED IN THIS KIT |
|
1) 1/4 Turn Ball Valves. 2) G37 Specific Brackets. |
CAD DRAWING |
| CAD DIMENSIONS (PDF) | INSTALLATION NOTES |
| This custom configuration will require that the OEM airboxes are removed. Each tank uses the existing mounting bolt in each corner that normally fastens the factory airboxes. So target vehicles are expected to be modded engine bays. | RECOMMENDED OPTIONS |
|
1) 1/4 Turn Ball Valves (Included) 2) Drain Extension kits 3) 3/8" Hose & Clamp supplies 4) Stock color choices: Satin Black, Glossy Black, Glossy Red, Dark Blue, Bare Brushed Aluminum 5) Sight Tubes shown, but are OPTIONAL |

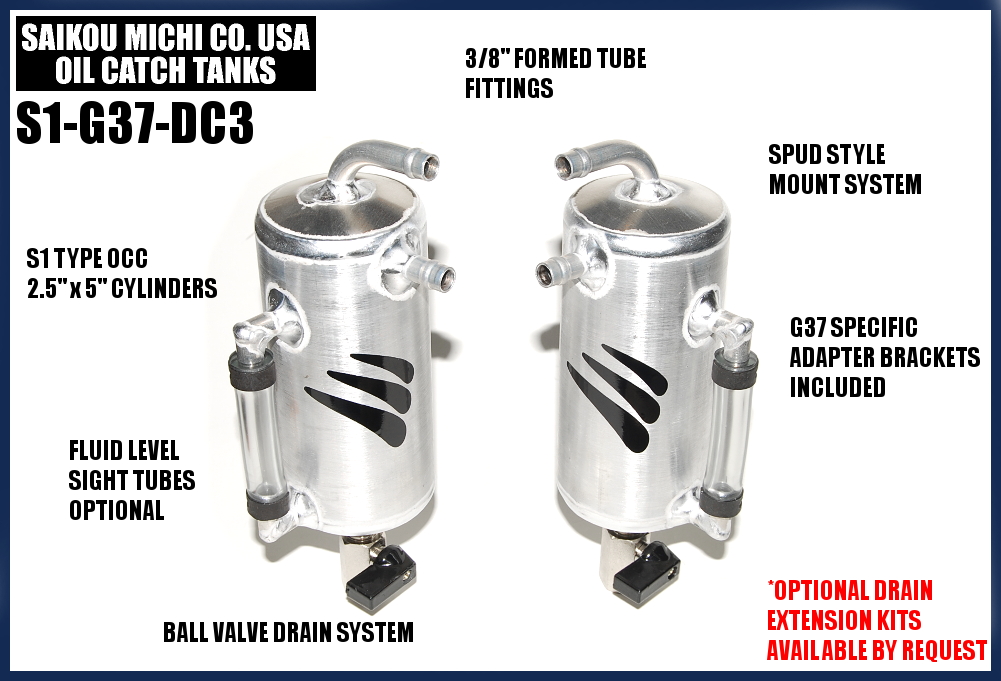

SAMPLE INSTALL PICS |
| G37 INSTALLATION PIC | |
CLICK FOR FULLSIZE
1/4 TURN
BALL VALVE
INCLUDED
BRACKETS
2 HOLE
MOUNT STYLE
DISCLAIMER:
All our products are simple filters and are not intended to modify the PCV system, this does not mean that local authorities will understand this. You are responsible for upholding local statues and keeping your vehicle legal. This product may be considered for "Offroad Use Only", please check your local statutes.
WARNING:
Working on any vehicle may be hazardous and result in injury. These products must be installed by a qualified technician. You must be qualified or seek the help of a professional mechanic. If you are not sure about how to connect this filter, have a professional mechanic perform the installation. Keep all hoses away from hot surfaces, if you are not sure of the routing, have a professional mechanic perform the installation. You are responsible for the safe and proper installation of this filter product.
