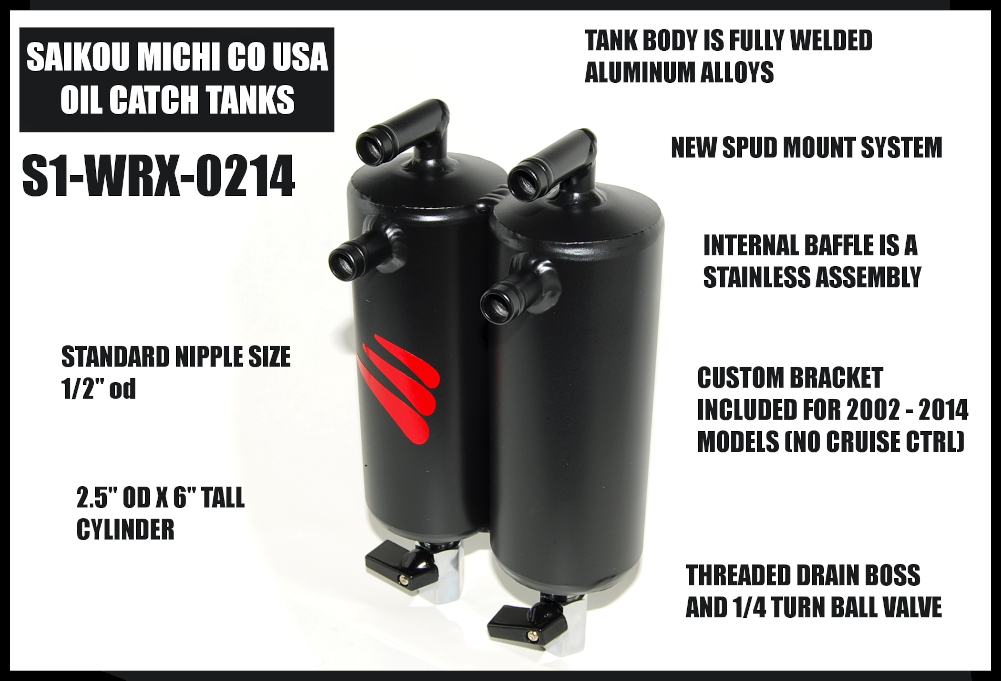

SUBARU S1-WRX-0214 DUAL TANK
| S1-WRX-0214 | |
|---|---|
| ROUTING TYPE | Closed Loop |
| BODY STYLE | Dual Tanks |
| CYLINDER SIZE | 2.5" OD x 6" TALL |
| TARGET VEHICLE | Subaru WRX 2002 to 2014 |
| HOSE SIZES | 1/2" |
| INSTALL DIFFICULTY | Intermediate |
| COST (plus postage) | $$ | GENERAL INFORMATION |
| This is a Dual tank configuration for a range of Subaru platforms, primarily STI WRX models. Full sized S1 tanks with the internally baffled design. Quick draining with the 1/4 Turn Ball Valves. And a Subaru specific bracket which uses OEM tapped holes in the firewall. This bracket has mounting points which spans 2002 to 2014 hole configurations. Some cruise controls harnesses may need to be moved for extra space. | INCLUDED IN THIS KIT |
|
1) 1/4 Turn Ball Valve Drain assemblies. 2) Subaru Bracket & bolt hardware. |
CAD DRAWING |
| S1-WRX-0214 CAD DIMENSIONS (PDF) | INSTALLATION NOTES |
| This Dual tank is mounted on the passenger side strut tower. It uses OEM tapped holes that normally hold the cruise control moduel. The module may or may not use all the required holes, but some bolts will need to be unscrewed, and the adapter bracket will be captured by the module and the module bolts. The Dual tank spuds will then attach to the bracket slot. Hoses then route as necessary. | RECOMMENDED OPTIONS |
|
1) 1/4 Turn Ball Valve Drain (Included) 2) Drain Extension kit 3) Hose kit supplies 4) Stock color choices: Satin Black, Glossy Black, Glossy Red, Dark Blue, Bare Brushed Aluminum. |
BLANK CONFIGURATION TEMPLATE |
|
In case you need any customization to fitting sizes or rotations: DC3 SHOP SKETCH TEMPLATE (PDF) |
|
CLICK FOR FULLSIZE
1/4 TURN
BALL VALVE
SPUD MOUNT
SYSTEM
SUBARU
BRACKET
