S3-OCC
ROUTING TYPE Closed Loop
BODY STYLE Single Tank
CYLINDER SIZE 3" OD x 7" TALL
TARGET VEHICLE Various, Universal Fit
HOSE SIZES (ID) 1/2" - 5/8" - 3/4" - 1"
INSTALL DIFFICULTY Easy to Moderate
COST $
GENERAL INFORMATION

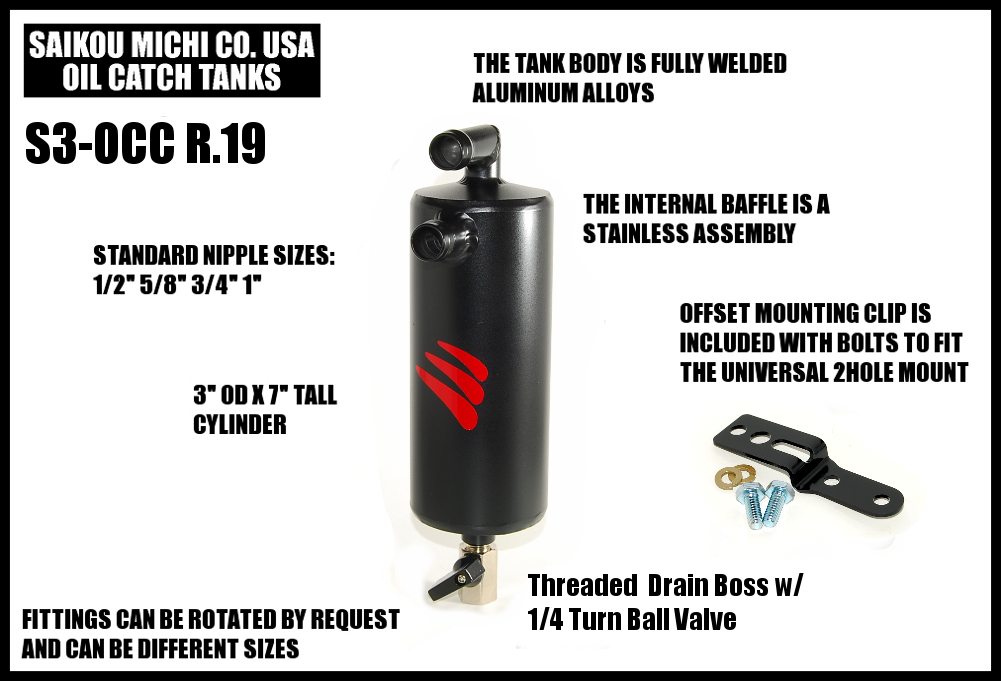

This is the largest OCC with excellent flow and plenty of volume. Simple connections are made with standard hoses and clamps. The body is fully welded aluminum alloy. The internals hold a stainless baffle assembly below the Outlet to help condense fumes into a liquid. This model may be ordered as shown or custom requests can be made to the configuration.
INCLUDED IN THIS KIT
1) 1/4 Turn Ball Valve drain assembly.
2) Offset mounting clip with bolts.
CAD DRAWING
S3 OCC DRAWING WITH DIMENSIONS (PDF)
INSTALLATION NOTES
For Universal installs, the valve cover connection is detoured into the top Inlet fitting, and then the hose continues from the side Outlet to its original destination. The intent is to add an OCC to the system, but not modifiy it. The hose will now include the new OCC to filter contaminants, but the routing will start and end at the original engine connections.
POPULAR OPTIONS
For this Universal OCC, the options will depend on the install, but the most popular items are:
1) 1/4 Turn Ball Valve Drain (Included)
2) Drain Extension kit
3) Hose kit supplies
4) Stock color choices: Satin Black, Glossy Black, Matte Black Glossy Red, Dark Blue, Bare Brushed Aluminum.
BLANK SHOP SKETCH TEMPLATE
If you need to make notes for custom rotations, etc, you can download the blank template linked below. If you want to send us a copy, you may scan it, take a photo, or screen shot.
S3 OCC SHOP SKETCH TEMPLATE (PDF)

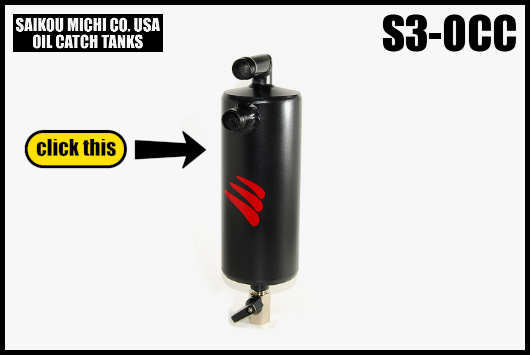

S3-OCC Photo

CLICK FOR FULLSIZE

Drain Photo

1/4 TURN

BALL VALVE

Offset Clip Photo

OFFSET CLIP

INCLUDED

2 Hole Mount

2 HOLE

MOUNT STYLE

LOGO
Saikou Logo Strip

DISCLAIMER:
All our products are simple filters and are not intended to modify the PCV system, this does not mean that local authorities will understand this. You are responsible for upholding local statues and keeping your vehicle legal. This product may be considered for "Offroad Use Only", please check your local statutes.


WARNING:
Working on any vehicle may be hazardous and result in injury. These products must be installed by a qualified technician. You must be qualified or seek the help of a professional mechanic. If you are not sure about how to connect this filter, have a professional mechanic perform the installation. Keep all hoses away from hot surfaces, if you are not sure of the routing, have a professional mechanic perform the installation. You are responsible for the safe and proper installation of this filter product.
