CHEVY/GMC S3-5300-OCC
Home > Products > S3-5300-OCC KIT
| S3-5300-OCC KIT | |
|---|---|
| ROUTING TYPE | Closed Loop |
| BODY STYLE | Single Tank |
| CYLINDER SIZE | 3" OD x 6" TALL |
| TARGET VEHICLE | Truck 4.8, 5.3, 6.0, 6.2 |
| HOSE SIZES | 3/8" |
| INSTALL DIFFICULTY | EASY |
| COST (plus postage) | $215.00 USD | GENERAL INFORMATION |

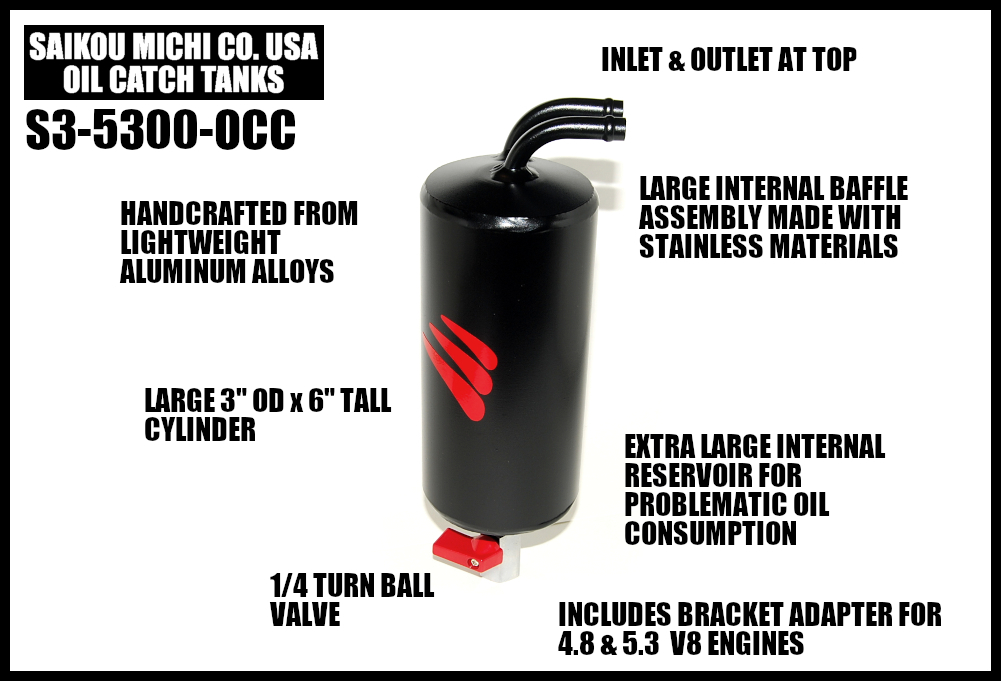

| Large CUSTOMIZED S3 type tank for various Chevy/GMC truck models that require a more substantial filtering system for the PCV. EASY Drop-In installation with the adapter bracket included, using factory mounting points. LARGE cylinder and reservoir with an internal stainless baffle assembly providing excellent flow characteristics. INTUITIVE routing for the hoses, and custom rotations to avoid any kinks! | INCLUDED IN THIS KIT |
|
1) 1/4 Turn Ball valve. 2) Custom 5300 Bracket. 3) 5ft Hose kit w/ Spring clamps. |
CAD DRAWING |
| S3-5300-OCC CAD DIMENSIONS (PDF) | INSTALLATION NOTES |

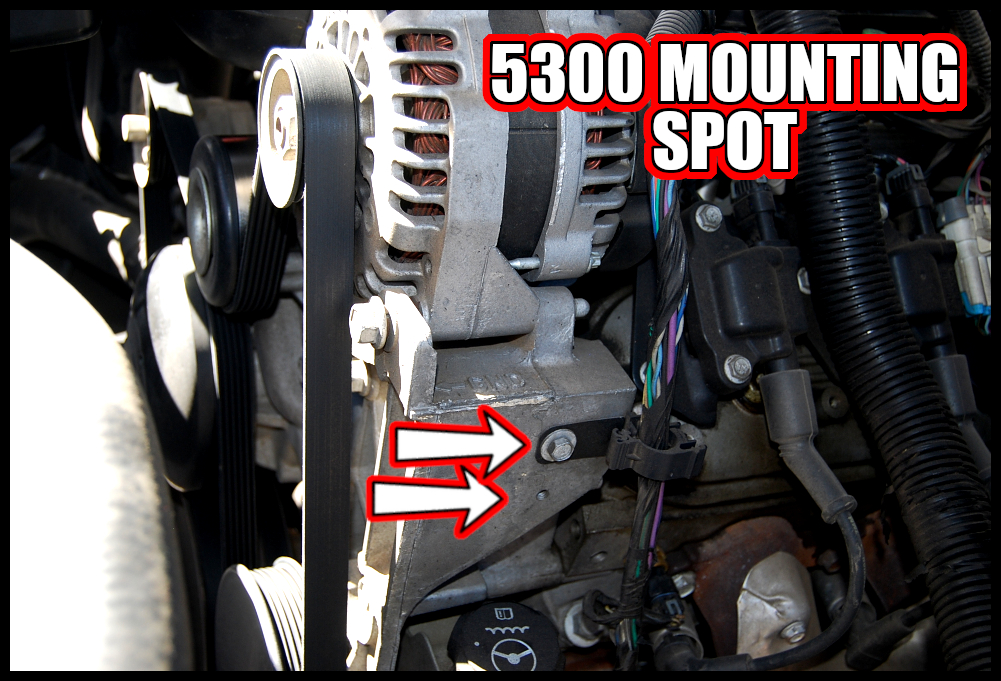

| For OEM trucks with the correct alternator bracket (SEE OEM MOUNTING HOLES SAMPLE PHOTO), there are only a few steps. Capture the 5300 bracket under the top wiring harness bolt, secure the bottom hole with the provided M6 bolt (these holes are metric). Mount the OCC onto the bracket with the included bolts. Cut the appropriate length of hose for each connection (allow a little slack). Carefully remove the OEM hose from the PCV to manifold. *You may have to slit the end to avoid stress on the plastic manifold fitting. Add a spring clamp to each end of your hoses, push on each end of the hoses onto the barbs and move the clamps over the barb beads. Use the included zipties to organize as needed. This is a QUICK install! | RECOMMENDED OPTIONS |
|
This kit is complete, but you may choose some color options: 1) Satin Black w/ Red logo 2) Glossy Red w/ Black logo 3) Bare Brushed Aluminum (logo color choice) |
SAMPLE 5300 PHOTOS |
|

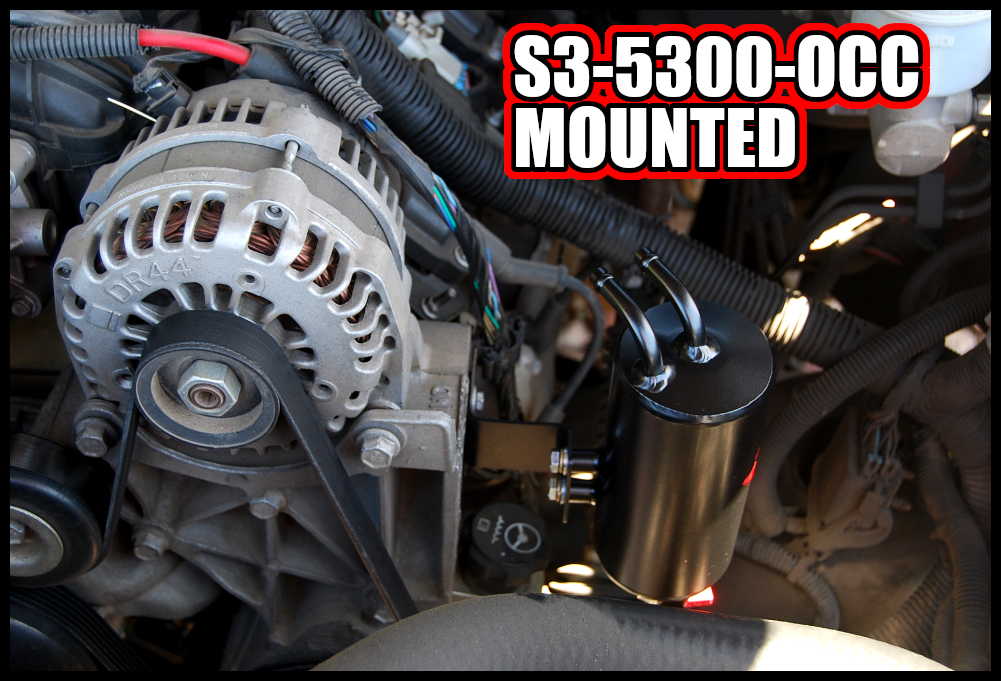

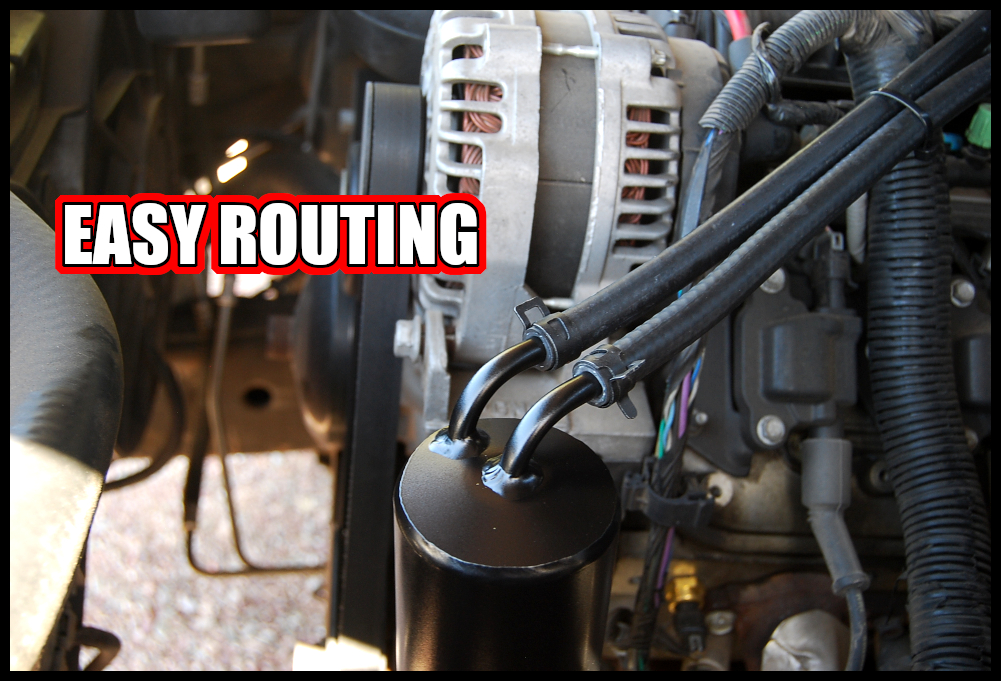

SAMPLE 5300 INSTALLED PIC 5300 HOSES CONNECTED OEM MOUNTING HOLES CHEVY/GMC PCV REFERENCE |
|
CLICK FOR FULLSIZE
QUICK
DRAIN VALVE
MOUNTING
BRACKET
EASY MOUNT
SYSTEM
DISCLAIMER:
All our products are simple filters and are not intended to modify the PCV system, this does not mean that local authorities will understand this. You are responsible for upholding local statues and keeping your vehicle legal. This product may be considered for "Offroad Use Only", please check your local statutes.
WARNING:
Working on any vehicle may be hazardous and result in injury. These products must be installed by a qualified technician. You must be qualified or seek the help of a professional mechanic. If you are not sure about how to connect this filter, have a professional mechanic perform the installation. Keep all hoses away from hot surfaces, if you are not sure of the routing, have a professional mechanic perform the installation. You are responsible for the safe and proper installation of this filter product.
